TY28 5 Pin 25A Aviation Waterproof Connector Female Male Plug Socket Quick Disconnect Panel Mount for Outdoor Electrical Device, 28mm OD

Package Includes: 1 x Plug with female contact 1 x Socket with male contact 1 x Waterproof / Dustproof CapFeatures: The connector can provide a safe and reliable connection in the harsh environment . TY28 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, motors. Specifications: TY28: Model: 2-9 Pin IP Rating: IP68 Panel Cutout Diameter: 28.5mm Cable Outer Diameter Range:10-15mm Coupling Type: Threaded Coupling Shell material: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PA66, max temperature 200℃ Contact Material: Pure copper plated gold Terminal Connection: Free-Solder / Screw Crimp Mating Cycle: >500 times Temperature Range: -25~+85℃

• TY28 5-pin waterproof electrical power connector, screw terminal connection, easy to assemble, free-solder

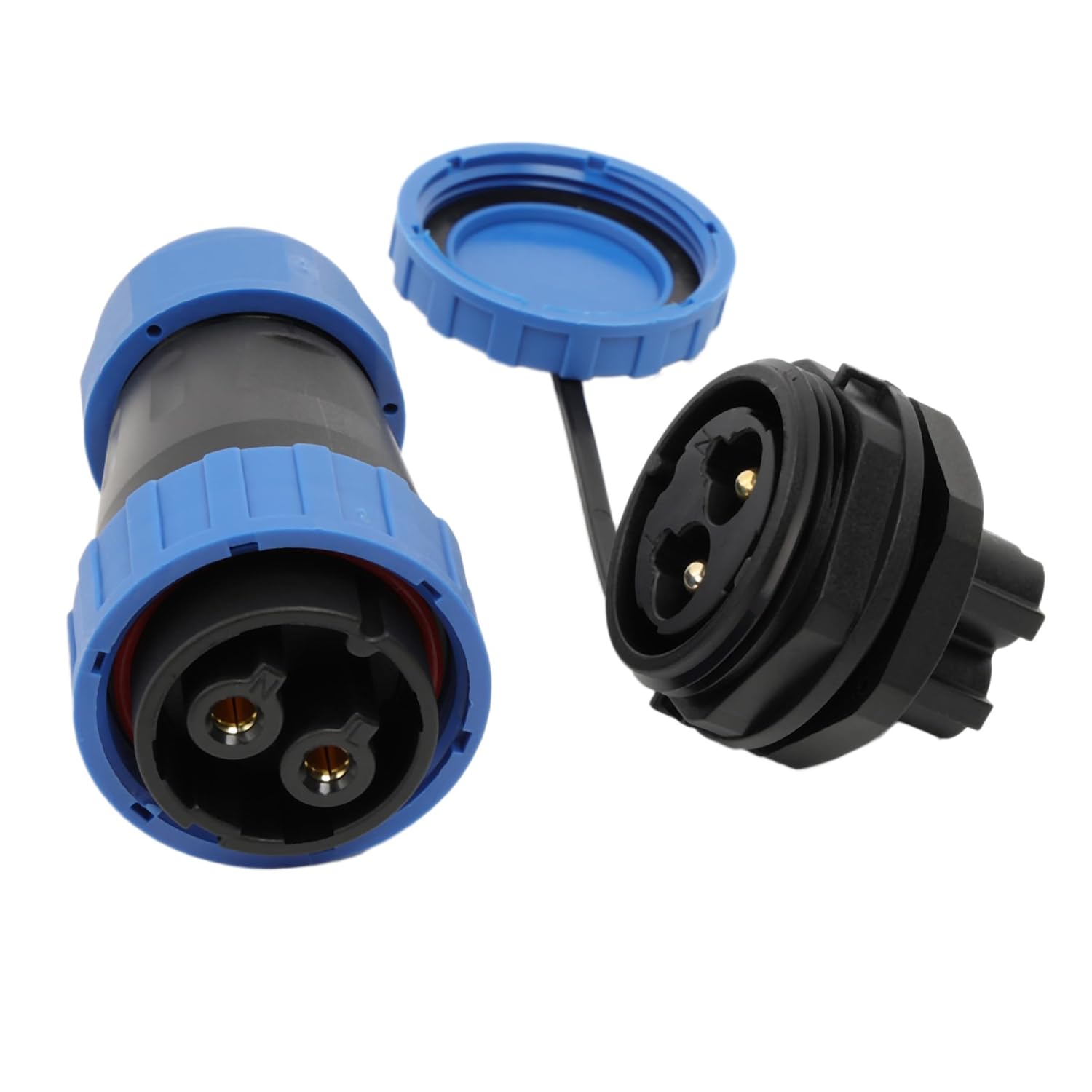

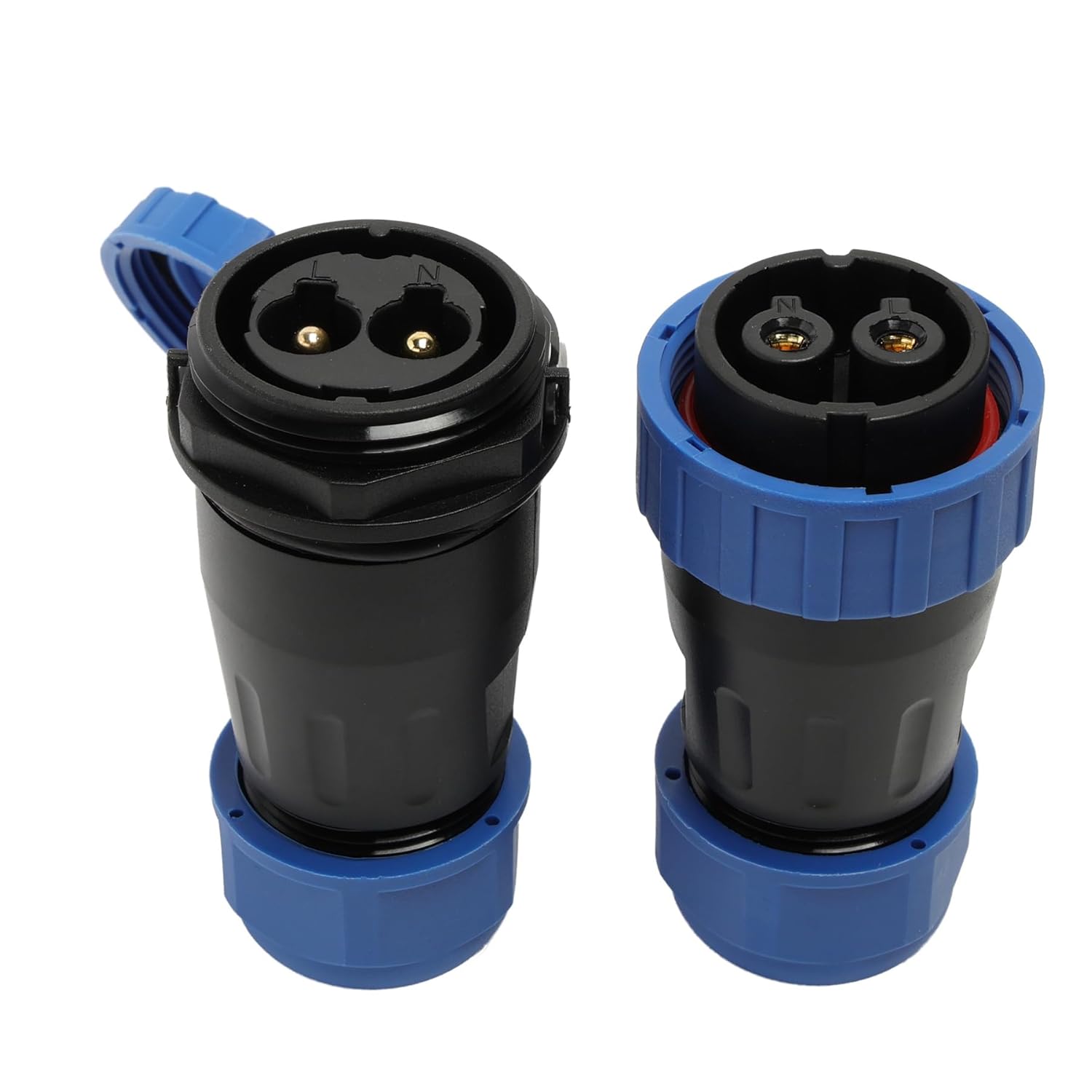

• Rear panel mount male socket and cable female plug, with watertight cap. Panel cutout 28.5mm, thread size M28 x 1.5
• Rated Voltage/Current AC 380V / 25A, Contact resistance 1mΩ, Insulation resistance 2000mΩ. Suitable wire outer diameter range 10-15mm, Wire gauge 4mm² or 12AWG, Contact Diameter Φ2.8mm
• Features Waterproof IP68 protection, threaded coupling, quick disconnect, bulkhead. The contact pins are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance
• Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment. Recommended wire stripping length: 9mm
